| PERFORMANCE DATA | |
| Contact resistance | 30mΩ Max |
| Insulation resistance | 100MΩ Min |
| Dielectric strength | 500 VAC rms 60HZ. 1min |
| Durability | after 200 insertions Contact Resistance 30mΩ Max |
| MECHANICAL | |
| Mating force | 35.5N Max. |
| Unmating force | 44.48N Max. |
| Retention strength | 76N Min. |
| MATERIALS | |
| Housing | PBT, Ny66, LCP Resin, UL94V-0 Rated Gray, Black, Natural, Blue… |
| Contact wire | Phosphorus bronze alloy Plated Hard gold(F, 15, 30, 50M-IN) over Nickel |
| EMI Shield | ¾ Hard Brass. Ni or Tin plated |
| NOTE | |

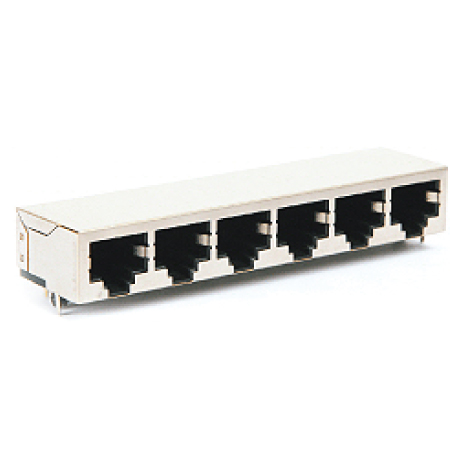

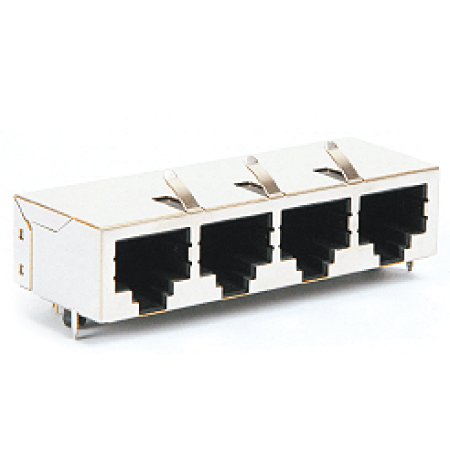

| FCC Standard 6P & 8P Modular jack and plug are now Equipment with shielding cover for EMI Reliable Modular Connection is now available with shielded Cable for digital transmission such as INS, ISDN, LAN, PC FCC test condition are satisfied Material is UL Approved UL & cUL Approved(DUXR2)(DUXR8) |
