| Specification Characteristic | |
| Port | 1×1 |
| Position Number | 8 Positions |
| Contact Number | 8 Contacts |
| Shielding | Shiedlded |

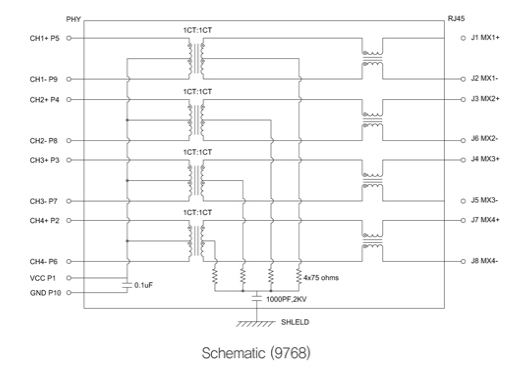

| Magnetics | Schematic available |
| LED | Non-Shiedlded/Shiedlded with EMI finger/Shielded with EMI finger. |
| Magnetics | Schematic available. |
| LED | Without LED/LED (Different colors of LED option available) |

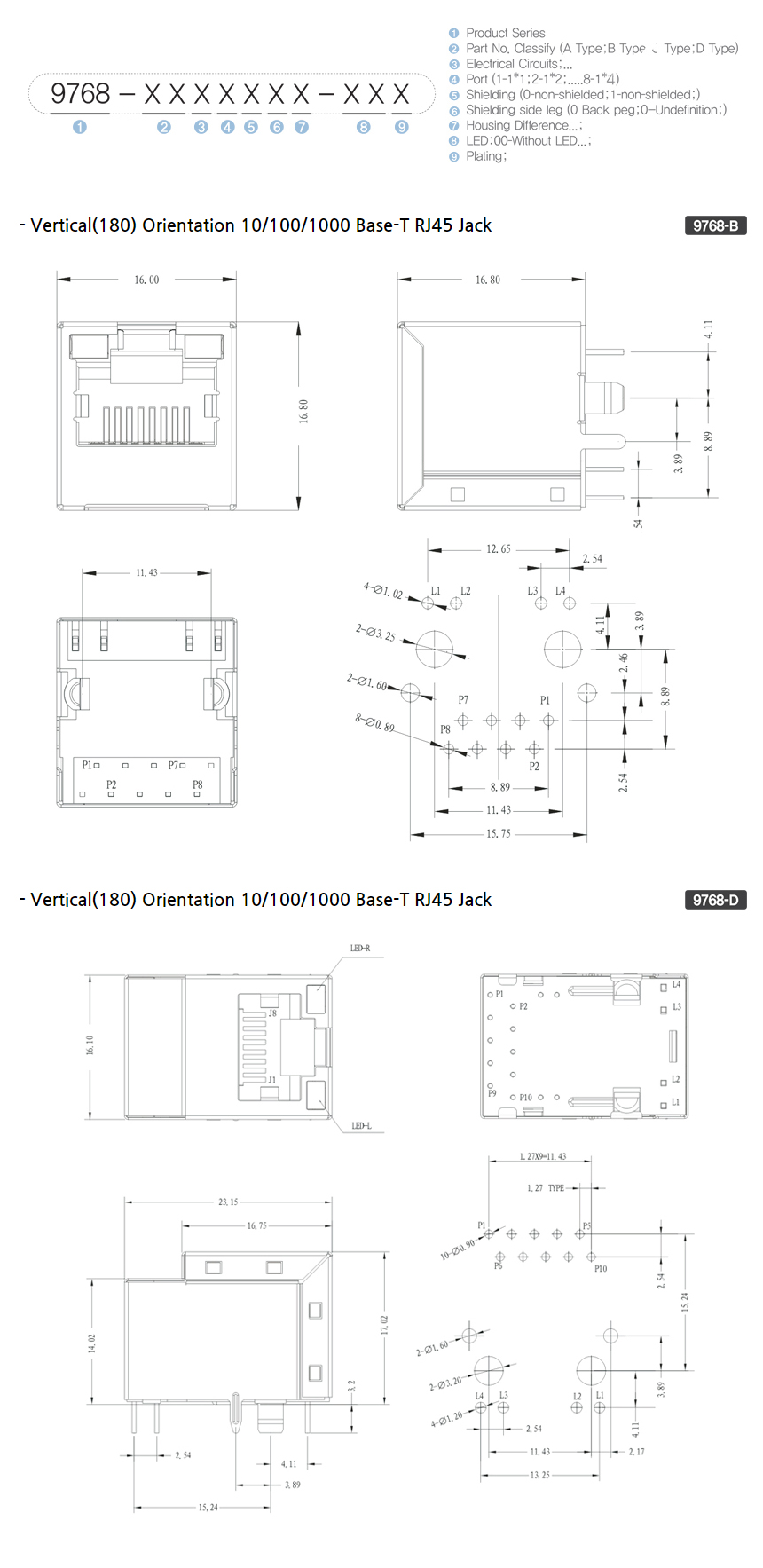

9768 Series
Products Category
Order Information
