| ELECTRICAL EFFICIENCY | |
| Voltage rating | 30VAC(rms) |
| Current rating | 1A |
| Contact resistance | 50mΩMax |
| Insulation resistance | 100 ㏁ Min |
| Contact Capacitance | 2pF Max. |
| MECHANICAL | |
| Durability | 1500 cycles |
| Mating force | 35N Max. |
| Unmating force | 7N Min.(initial) 3N Min.(after 5,000cycle) |
| MATERIALS | |
| Housing | PBT, Ny66, LCP Resin, UL94-V0 Rated |
| Contact plate | Phosphorus bronze alloy Plated Hard gold over Nickel |
| EMI Shield | ¾ Hard Brass. Ni or Tin plated |
| FEATURES | |

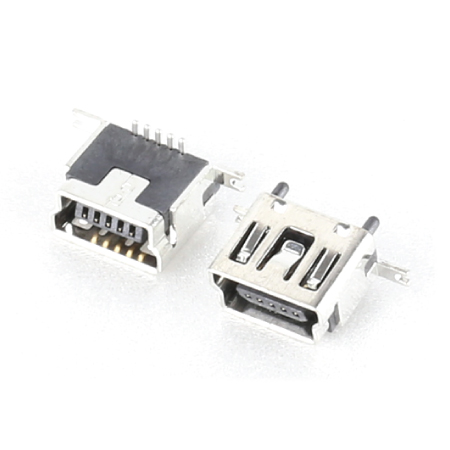

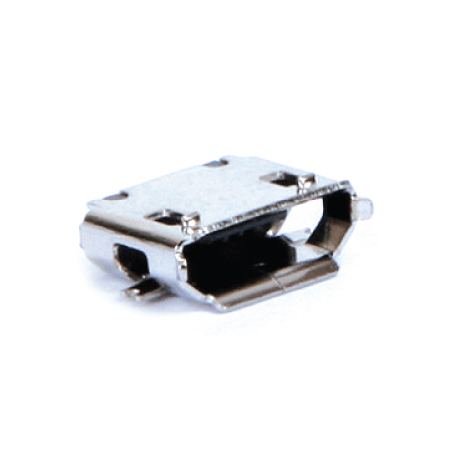

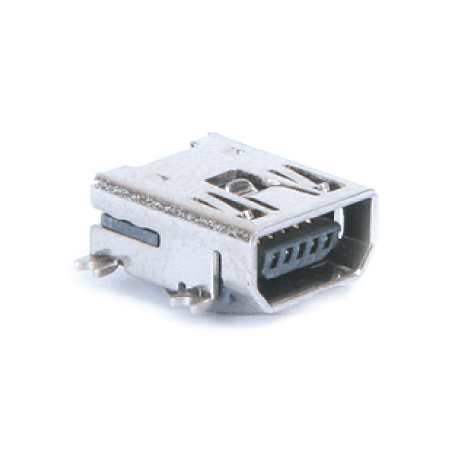

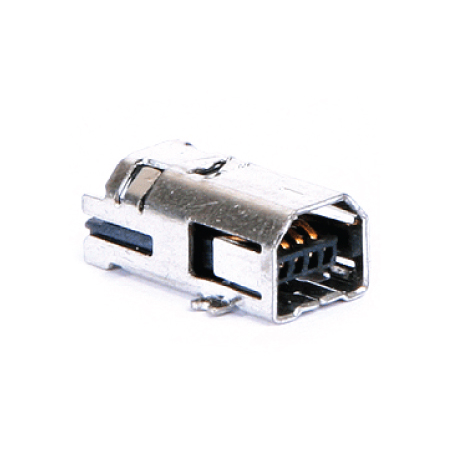

| – Ultra-small size achieved universal series bus connector and cable. – 4Pin, 5Pin, 6Pin(One ID pin) type are 0.8mm pitch. – 4Pin type is full compliant with current USB 1.0 specifications. – 5, 6Pin type is full compliant with current USB 2.0 specifications. Receptacle and plug housing are UL94-VO grade fire retardant. – Gold plated contact to ensure low contact resistance. – To make sure your connections are perfect every time. – EMI protection by shielding features. – Ideal for connection portable PCs as slim notebook PCs and handhold PCs to small. – Slim peripheral equipment (digital cameras, small mouse, PDA, MP3, Hub etc.) |
