| ELECTRICAL EFFICIENCY | |
| Current Rating | 2A at 1.2 VDC or 1A at 100 VAC |
| With Standing Voltage | 250 VAC for 1 Minute without breakdown |
| Insulation Resistance | 500 ㏁ Min. at 500 VCD |
| Contact Resistance | 30 mΩ Max. at 500 VCD |
| MATERIALS | |
| Contact Terminal | Phosphor Bronze/Gold, Silver, Tinplated |
| Insulator | UL94-V0 Rated Glass-Filled Polyester, BLACK |
| Shield Cap | Copper Alloy, Tin/Nickel Plated |
| FEATURES | |

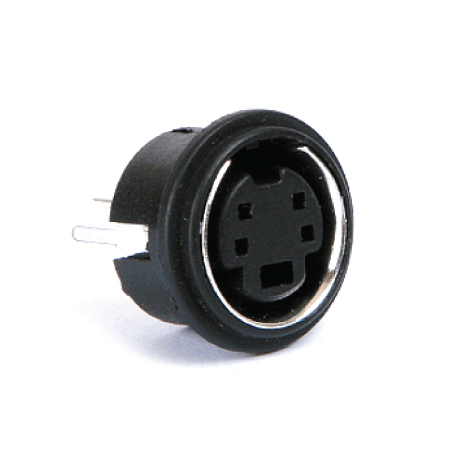

| – Sockets have right angle solder able tails for mounting to PC board. – Tail aligned positions contacts for reliable insertion into PCB. – Super-Shielding on front face of sockets helps reduce EMI/RFI/ESD. – Board locks provide mechanical hold down during wave soldering processes. – Provides locking window. – Applicable to VCR, CCD Camera, PC, Terminals, Computer Peripherals, Test Equipments, Work Station, LAN, etc. |
